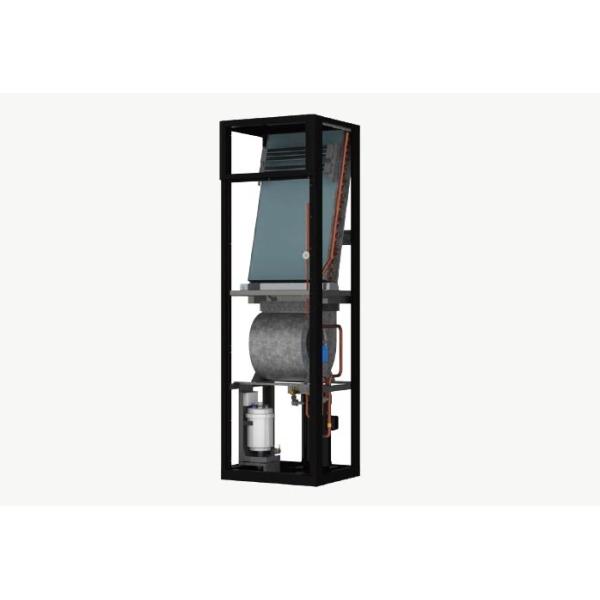

    Refrigerant R410a Computer Room 6-20KW Precision Air Conditioning

    Ask Lasest Price
    Brand Name : Coolent
    Model Number : M04-20
    Certification : ISO/CE
    Price : to be Negotiated
    Payment Terms : T/T, L/C
    Supply Ability : 1000Unit/Month
    Delivery Time : 20-35Working Days
    • Product Details
    • Company Profile

    Refrigerant R410a Computer Room 6-20KW Precision Air Conditioning

    Refrigerant R410a Computer Room 6-20KW Precision Air Conditioning


    Product Introduction


    The Cool-smart series computer room precision air conditioner is designed for small and medium-sized computer rooms, base stations, equipment rooms, etc. Micro-cool has the characteristics or high air volume and small enthalpy with high reliablity, high efficiency, long working life and energy saving advantages.

    Benifits


    Advantages

    Refrigerant R410a Computer Room 6-20KW Precision Air Conditioning

    R410AHigh-efficiency Comprossor

    • Adopt environmentally friendly refrigerant R410A, high performance

    • The compressor has strong ability to withstand impurities and liquid shock

    • Powerful built-in protection functions, including built-in motor disconnection protection (temperature and current), built-in pressure relief valve, built-in exhaust temperature protection, built-in anti-stop reverse stop valve, etc.


    Condenser stepless speed regulation

    • Stepless speed regulation of condenser

    • Energy saving

    • Anti-corrosion and long-life design

    • The condenser is easy to install and can be installed on the roof or foundation platform

    • Small size and light weight

    • Ultra low noise


    Large area hydrophilic evaporator

    • Large area

    • 25% larger than the comfort air conditioner in the same power section

    • Large pipe diameter design, less pressure loss, high efficiency

    • Internal thread

    • Hydrophilic membrane

    • High-efficiency heat exchange aluminum fins

    • High withstand voltage design



    Applications


    Computer room;

    Small and medium data center;

    Base Station;

    Storage room, testing room;

    4G/5G communication base station;

    Equipment room with High precision control of temperature and humidity.



    Product Parameters


    Model

    M04

    M06

    M08

    M13

    M16

    M20

    Power Supply

    220V1Ph-50Hz

    380V3Ph-50Hz

    Air discharge

    Up Front/Down

    Technical Data Sheet

    AC Fan

    Total cooling capacity-KW

    4.2

    6.4

    7.5

    12.5

    16.8

    20.2

    Sensible cooling capacity-KW

    3.9

    5.8

    6.9

    11.3

    15.3

    18.3

    Unit FLA-A(heating, humidifying type)

    20.0

    25.0

    16.8

    22.0

    23.5

    28.6

    Compressor Quantity

    1

    Fan Quantity

    1

    Air Volume-m3/h

    1600

    1900

    2300

    3600

    5100

    6500

    Heater Capacity-KW

    3.0

    3.0

    6.0

    6.0

    6.0

    6.0

    Humidification-kg/h

    3

    3

    3

    3

    6

    6

    Power of humidifier-KW

    2.3

    2.3

    2.3

    2.3

    4.5

    4.5

    Outdoor Condenser

    Model

    SCA020

    SCA020

    SCA030

    SCA030

    SCA050

    SCA050

    Standard unit operating temperature range-℃

    -15-45℃

    Low Temperature Components Operating Temperature Range-℃

    -40-45℃


    Certificates


    Factory Details


    Packing & Delivery


    Cases
