1.Control panel

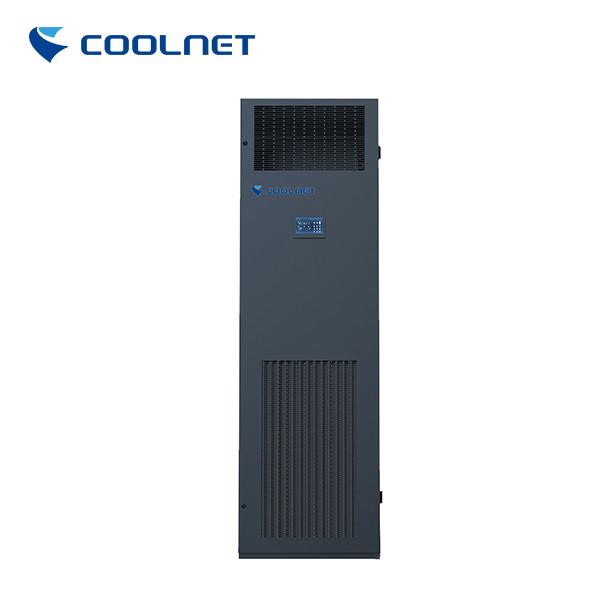

*The indoor unit of the Cool-smart series CRAC system is equipped
with a controller. *The controller uses a 4.3-inch touch screen, with Chinese/English
intelligent selection, strong operability, parameter setting
through touch screen. *The display is used to show the temperature, relative humidity,
system operation, setpoints and alarms. Use these selector buttons
to adjust cooling/heating or humidification and the alarm control
settings are used to operate the system.
2.Air supply system
*Up air supply system, indoor hot air is sucked in through the
return air outlet of the Cool-smart units, and then sent to the air
by the fan after passing through the coil cap or duct. The upper
air system G4 filter is installed in the return air outlet of the
unit.
*Downward air supply system, indoor hot air is sucked in through
the G4 filter on the upper end of the unit, and then passed to the
bottom platethrough the coil by the fan of the unit.
3.The outdoor unit
The air-cooled outdoor unit is installed outdoors; the outdoor unit
includes: condensing coil, axial flow fan and motor, etc.
4.Indoor unit parts
*Cool-smart series indoor units are equipped with evaporator coils,
expansion valves, fans, floor water leak detectors, filter driers,
high pressure/low pressure switches, high pressure sensors, and
compressors. *A heater and humidifier are optional equipment. External input
power needs to be equipped with a power switch.
*Evaporator coils are constructed of copper tubes and aluminum fins
and are designed for the high sensible heat requirements of
electronic equipment.
*The compressor is installed in the indoor unit, which is suitable
for the all-weather operation of the air conditioner in the
communication room, which is more beneficial to the life of the
compressor.
|
