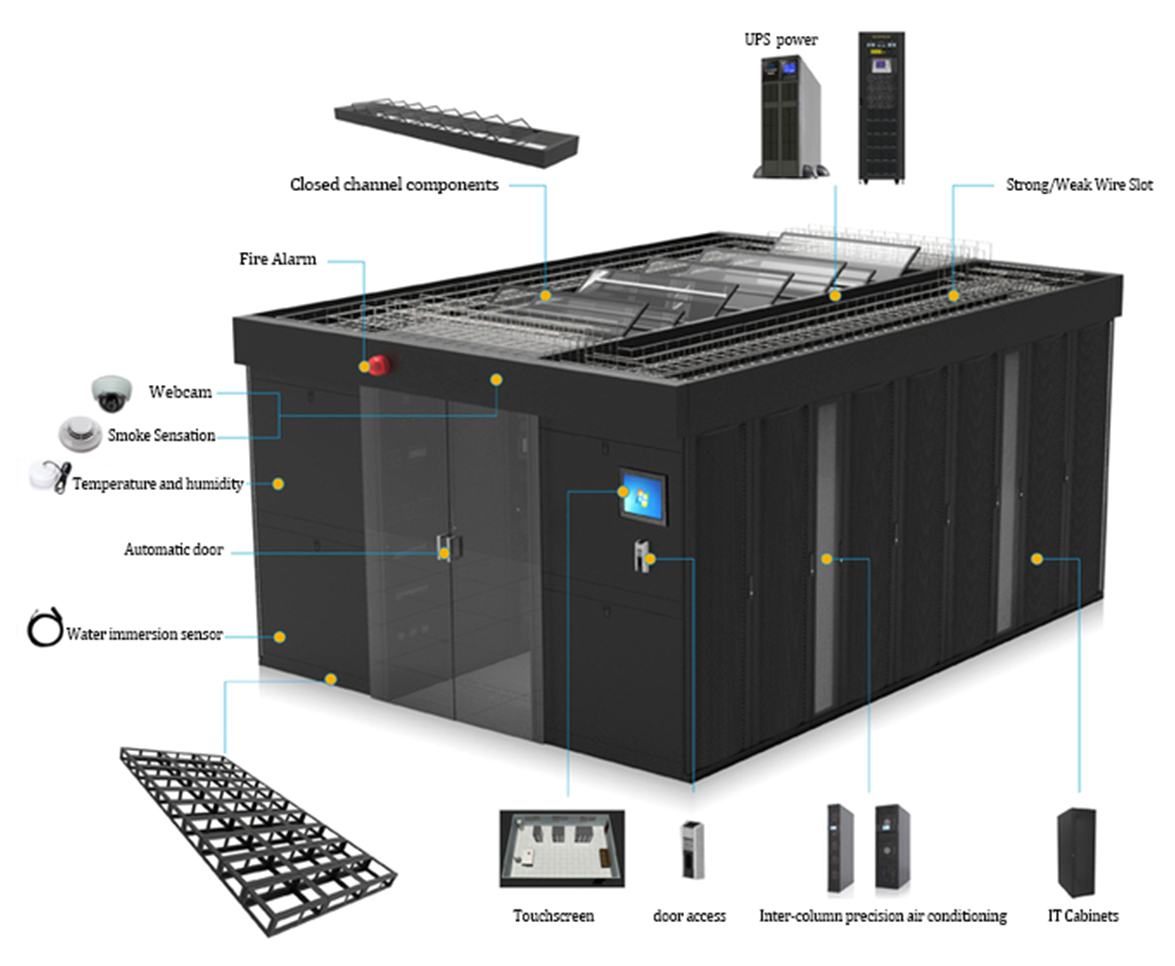

Rack Part The modular data center can be configured with N cabinets, including
server cabinets, network cabinets and integrated wiring cabinets. Appearance of the cabinet The cabinet size of the modular data center configuration is
uniform, the cabinet conforms to the IEC60297-1 standard, and the
front and rear air ducts are adopted. The appearance of the cabinet
is shown in the figure. Aisle Containment -Modular design The Aisle of the modular data center is mainly composed of end
doors and skylights. End gate (1) The end doors of the aisle are divided into sliding doors and
double doors, which can be selected according to customer needs. (2) Sliding door size: height × width × depth = 2050mm × 1200mm ×
42mm.
The sliding door adopts a sliding structure, the cabinet is used as
the carrier, and the upper and lower rails are installed to ensure
the independence of the closed channel system. The door panel is
bent from 1.5mm cold-rolled steel plate, and tempered glass is
installed in the middle to ensure the visibility of the area in the
passage. Adopting modular unit design concept, each unit can be installed
and disassembled independently, and can be closely connected with
adjacent units, which is convenient for disassembly and assembly;
at the same time, it is also suitable for maintenance and
management of other equipment on the channel.
Good sealing
All unit modules in the hot and cold aisle system are connected
precisely, and the parts are sealed with good sealing tops or
sponge strips, which not only maintains the aesthetics, but also
prevents the leakage of cold air in the cold aisle.
Good light transmission
The system is composed of toughened glass with strong light
transmittance Power Supply- Modular UPS According to the power supply requirements of large and
medium-sized data centers, a modular UPS solution has been
introduced, which can be flexibly configured with 80-300kVA modular
UPS according to the customer's system power supply requirements.
The module adopts advanced high-frequency switching technology,
fully digital DSP control technology and the world’s leading active
PFC and LLC topologies to achieve high input power factor, accurate
output current sharing performance, and reliable monitoring and
management system. The equipment provides safe, reliable and pure
AC power. Cooling System - In Row Air Conditioning Unit Inverter In Row air conditioners are tailor-made high-density
cabinets, adopts advanced frequency conversion technology and uses
the environmentally friendly refrigerant R410A. The output cooling
capacity is adjusted in real time according to the change of the
detected load, to avoid frequent start and stop, and to ensure the
temperature of the computer room environment.
Compared with fixed frequency air conditioners, the annual energy
saving rate of variable frequency inter-train air conditioners can
reach 29%. Monitoring System The monitoring system system has the characteristics of simple
configuration, strong access, and high reliability. It can manage
all power, environment, and cooling in data center, integrate
mainstream brand access control, video and other security systems,
through distributed collection, high concurrent processing
capabilities Meet the needs of networked monitoring and management
of multiple computer rooms, allowing data center operation and
maintenance personnel to control the operation safety of the
computer room in real time. |
