7000 BTU 2.0KW Server Rack Mount Air Conditioner Split Type

Ask Lasest Price
Brand Name :	Coolnet
Model Number :	CI05,09
Certification :	CE/ISO9001
Price :	$500.00-5000.00/set
Payment Terms :	T/T
Supply Ability :	1000-5000/set/month
Delivery Time :	4W

Add to Cart

Product Details
Company Profile

7000 BTU 2.0KW Server Rack Mount Air Conditioner Split Type

Server Rack Cooling Rack-Mount Air Conditioning Cooling Capacity 7,000 BTU / 2.0 KW

Product Introduction

In-Rack is the most precise cooling available, as the rack and the air conditioner operate in a closed relationship with one another. Cold air has no choice but to pass through the servers; hot air has no choice but to pass through the heat exchanger.

In-Rack cooling provides a computing environment-a microclimate-that is thermally neutral to the rest of the room.

Feature & Benefits

Characteristic & Advantages

High-level Configuration

▪ High-efficiency inverter compressor, ultra-precise PID control, more precise temperature control.

▪The well-known EC centrifugal fan can adjust the air volume output ratio in real time as needed.

▪Equipped with electronic expansion valve, smoothly adjust the throttle opening, realize precise adjustment of the unit.

▪Outdoor motor chopper speed regulation, which can realize 25-100% wide voltage speed regulation control.

▪R410A environmentally friendly refrigerant design.

Safe & Reliable

▪Very wide grid adaptability, can meet ±20% voltage range, adapt to various harsh grid environments.

▪Multi-drainage and anti-back flow design to prevent cabinet flooding.

▪Intelligent self-detection of refrigerant capacity and intelligent early warning to ensure the safe operation of the refrigeration system.

High Intelligent

▪High-efficiency inverter compressor, ultra-precise PID control technology.

▪Unique vibration compensation algorithm to realize broadband operation of the unit.

▪Safe and reliable anti-condensation algorithm to ensure the safe operation of the server.

Easy Installation & Maintenance

▪Standard modular design to fit into standard server racks.

▪The design of plug-in terminals on the fan side and the whole machine makes the whole machine easy to maintain and fast to install; it occupies a small area and has 100% full frontal maintenance.

▪Refrigeration piping is connected with quick couplings.

Various Options

▪Strong drainage of condensate

▪Wet film humidifier

▪Electric heater

Applications

Micro Data C enter
Single row cabinet
Modular Computer Rooms
Medium and high heat density computer room
Modular Data Center
IT Rack for Blade Servers

Indoor Unit Parameters

Model-CJA	0003	0005	0007	0012
Phase/Function	1.5P,Single Phase	2P,Single Phase	3P,Single Phase	5P,Single Phase
Parameters
Cooling capacity kW	3.5	5	7.5	12.5
Sensible cooling capacity k	W 3.5	5	7.5	12.5
Air volume m³/h	800	1150	1600	2300
Sensible heat ratio %	100	100	100	100
Heating kW (Option)	1	1	2	3
Maximum operating current A	15	15	25	34
Power Cord Cable Specifications	mm 3×2.5	3×2.5	3×4	3×6
Indoor/outdoor unit shut-off valve
Refrigerant gas pipe φ mm	12.7	12.7	12.7	15.88
Refrigerant liquid pipe φ mm	9.52	9.52	9.52	9.52
Indoor unit structural parameters
Dimension:W×D×H mm	442×714×175 (4U) 442×714×218 (5U)	442×714×218 (5U)	442×714×351 (8U)	442×714×440 (10U)
Outdoor Unit
Type-CJT	3005	3005	3008	3013
Quantity	1	1	1	1

Note 1: Under standard conditions, the indoor dry bulb temperature is 37°C, the wet bulb temperature is 21°C, and the outdoor dry bulb temperature is 35°C;

Note 2: The above table is only part of the parameters, the specific configuration is subject to the actual purchase of the nameplate.

Outdoor Unit Parameters

Type- CJT	3005	3005	3008	3013
Power supply	220Vac/1Ph/50Hz
Installation	Vertical
Speed mode	Stepless speed regulation
Noise dBA	54	55	56	58
Rated current A	6	6	10	15
Power Cord Cable Specifications	mm 4×1.5	4×1.5	4×2.5	4×4
Communication cable specificati mm (with shielding function)	on 3×1	3×1	3×1	3×1
Structural parameters of outdoor unit
Dimension:W×D×H mm	840×285×610	840×285×610	880×360×800	930×390×1270

① The power cord of the outdoor unit must be connected from the indoor unit;

②The ex-factory unit is not equipped with a 4.3-inch touch screen, and needs to be purchased separately.

Certificates

Factory Details

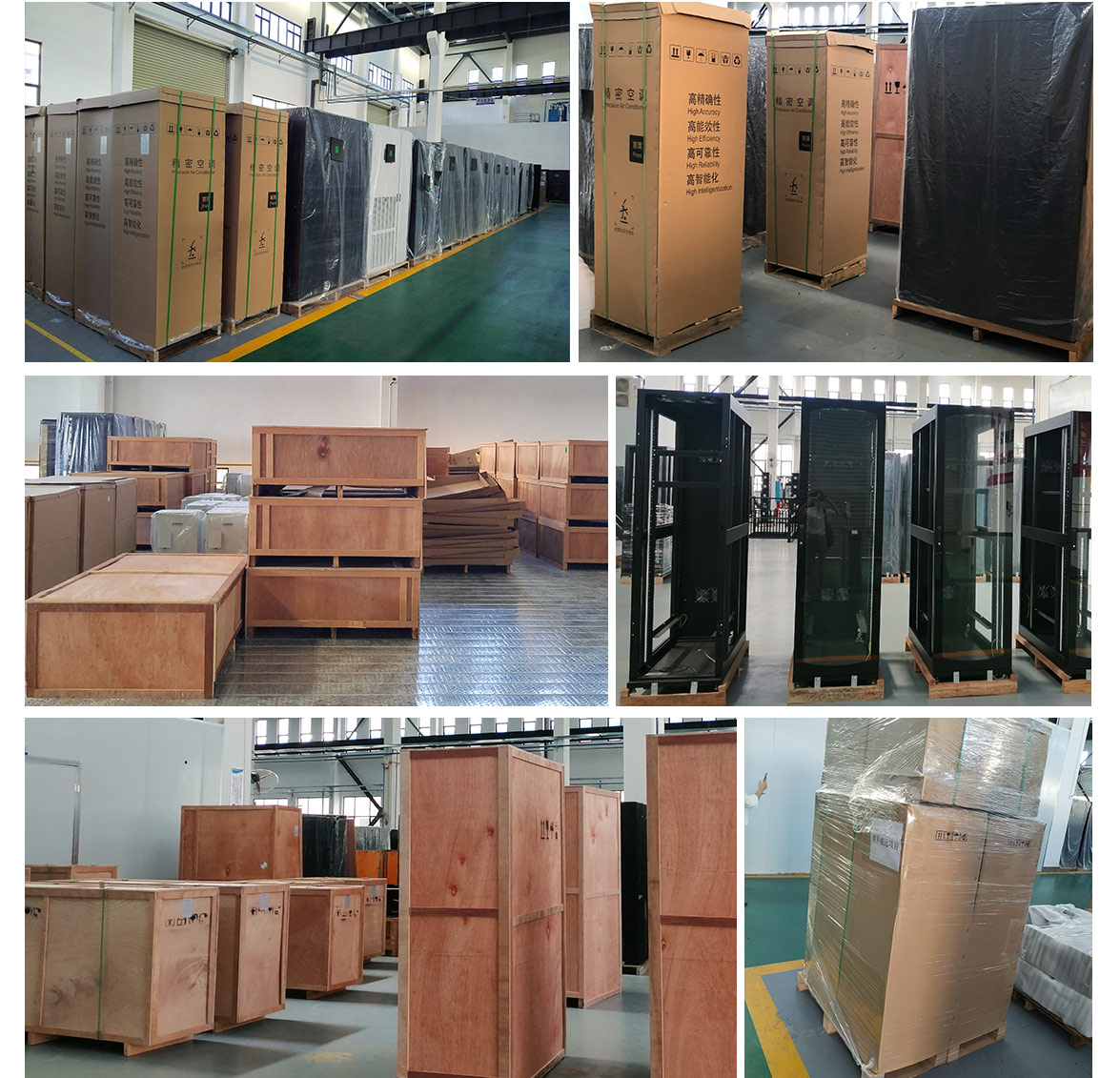

Packing & Delivery
