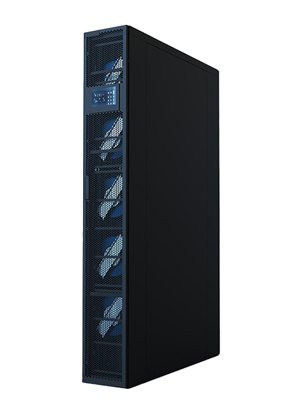

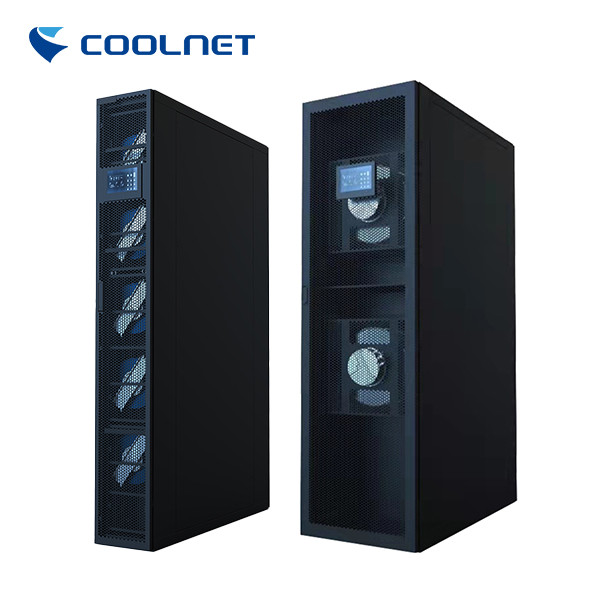

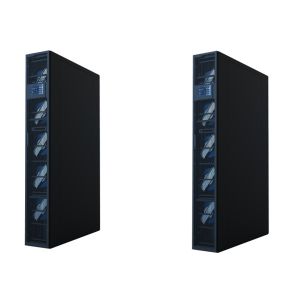

R410A Inrow Cooling Unit For Modular Data Center Cooling

Product Introduction Coolnet power designed the Cool-row series of in-row air conditioners. This air conditioners can completely solve the problem of short-circuit of cold and hot air flow through the horizontal air supply method of supplying air from the cold aisle and then returning the air from the hot aisle, ensuring the uniform temperature of the server cabinet, eliminating local hot spots, and increasing the number of servers. The reliability of the operation at the same time effectively reduces unnecessary energy consumption. Application Single rack with power larger than 3kW High heat density computer room Modular DC Container type DC DC with low PUE Hot spot reconstruction

Air Supply Method

Structure & Components

Compressor The industry's top EC scroll compressor, Variable displacement design to ensure that the unit load changes Safe operation under chemical conditions; high reliability, Long life and low noise. Oil separator Well-known brand oil, special antioxidant high voltage resistance, specially designed for R410A system count. Effectively prevent lubricating oil from entering the heat exchanger Air filter Well-known brand mature product, fully adapted R410A system with efficient acid removal , filtration, drying ability to ensure the system safe operation.

Technical Parameter

Model	CRA013A	CRA020A	CRA040A	CRA050A	CRA060A
Air supply	Front/Side	Front/Side	Front	Front	Front
Power supply	380VAC/3Ph/50Hz
Cooling capacity-KW	13.2	26.7	42.6	53.3	63.9
Sensible cooling-KW	13.2	26.7	42.6	53.3	63.9
Compressor
Refrigerant	R410A
Quantity	1
Fan
Fan type	EC Centrifugal fan
Quantity	4	5	2	3	3
Air volume-m3/h	3200	5000	8800	11000	12500
Heater
Heat type	PTC
Capacity-KW	2	3	6	6	6
Humidification
Capacity-KW	1	1.5	3	3	3

Certificates

Factory Details

Packing & Delivery

Case
