    Functional PDU Series Power Distribution Unit Horizontal / Vertical Installation

    Ask Lasest Price
    Brand Name : COOLNET
    Model Number : Basic PDU
    Certification : CE,ISO,ROHS
    Price : 50~500USD per unit
    Payment Terms : L/C, T/T
    Supply Ability : 10000 unit per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Functional PDU Series Power Distribution Unit Horizontal / Vertical Installation

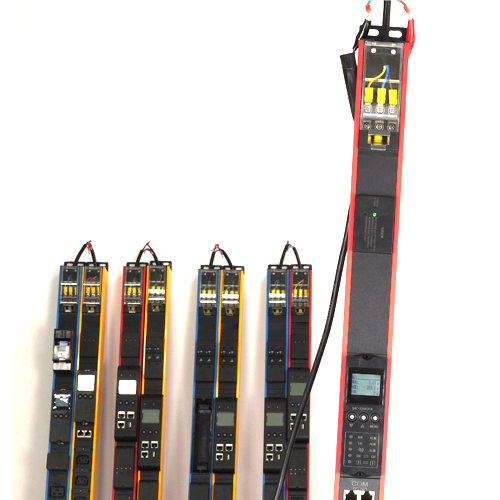

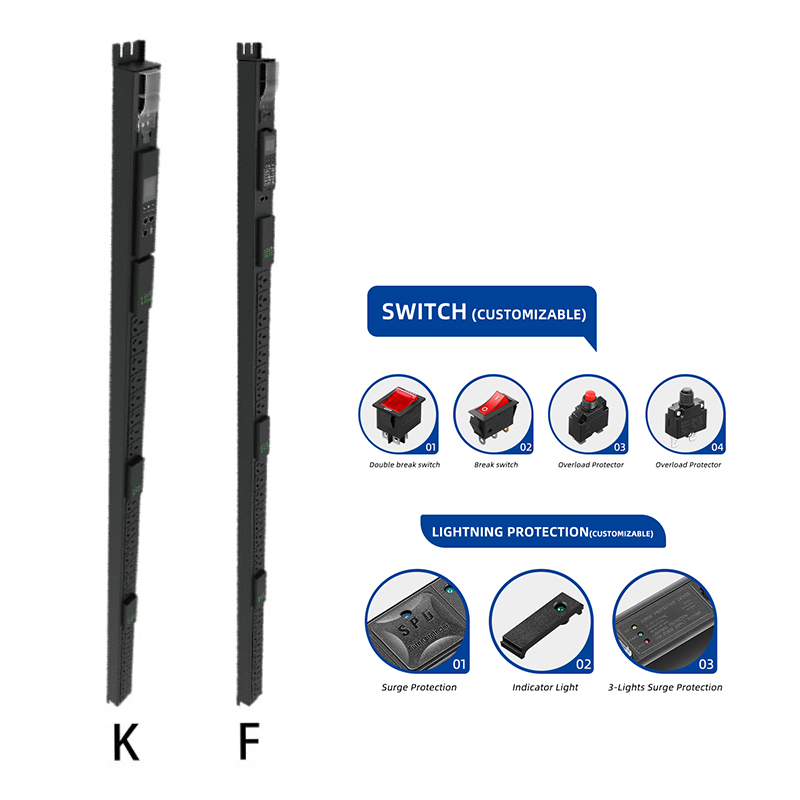

    Functional PDU series power distribution unit

    Product Introduction

    The functional PDU is designed according to the IEC standard, and is used to supplement the limited output sockets and functions of ordinary PDUs to meet the customized development needs of customers: configure air switches to meet AC and DC high-power input/output, and support single-channel/multi-channel grouping sockets Independent control; support optional functional modules: transparent open junction box, temperature detection module, air/hydraulic switch assembly, meter module, socket execution module, lightning protection module, fuse, etc.; support single-phase AC, three-phase AC, - 48V DC, 240V HVDC, 336V HVDC and other application scenarios; support access to 8 sensors including temperature and humidity, door contact, water immersion, smoke, infrared, and wind speed.



    Feature


    • 2.00mm thick profile, the product structure is stable, which can avoid the risk of structure collapse or socket falling.
    • Integration of automatic welding of high-purity red copper bar, Ensure through flow of product redundancy, Control temperature rise<3°C, Raise the PUE of the computer room.

    • Open type junction box improve efficiency and reliability, Make operation and

      maintenance convenient.

    • Connecting the bridge plate silver-plated red copper process,support 80A MAX through flow.


    application

    • Communication industry
    • Security system
    • IDC engine room
    • Electric power system
    • Track traffic
    • Enterprise small and medium data center
    • Office scene
    • Dispatch center

    Parameter


    PDU


    Parameters


    input

    Input typeAC single phase, AC three phase,-48VDC,240VDC,336VDC
    Input mode

    Transparent open type junction box,power cord, cable,

    industrial connector, socket etc.

    Input voltage range100-277VAC/312VAC-418VAC/11VDC-240VDC/-43VDC- -56VDC
    AC input frequency50/60Hz
    total load currentMAX 63A

    Output

    Storage temperature-40 - +70
    Relative humidity5-95% (No condensation)
    Atmospheric pressure70kPa - 106kPa
    Working altitudeNo more than 4000M

    Environmental

    Working temperature-10 - +75
    Storage temperature-40 - +80
    Relative humidity5-95% (No condensation)
    Working altitudeNo more than 4000M
    IP ratingIP20
    Protectioninput protection moduleCircuit breaker, lightning protection, leakage protector, temperature insepction module (optional)
    Output protection moduleCircuit breaker, fuse box, fuse(optional)

    Certification


    Case

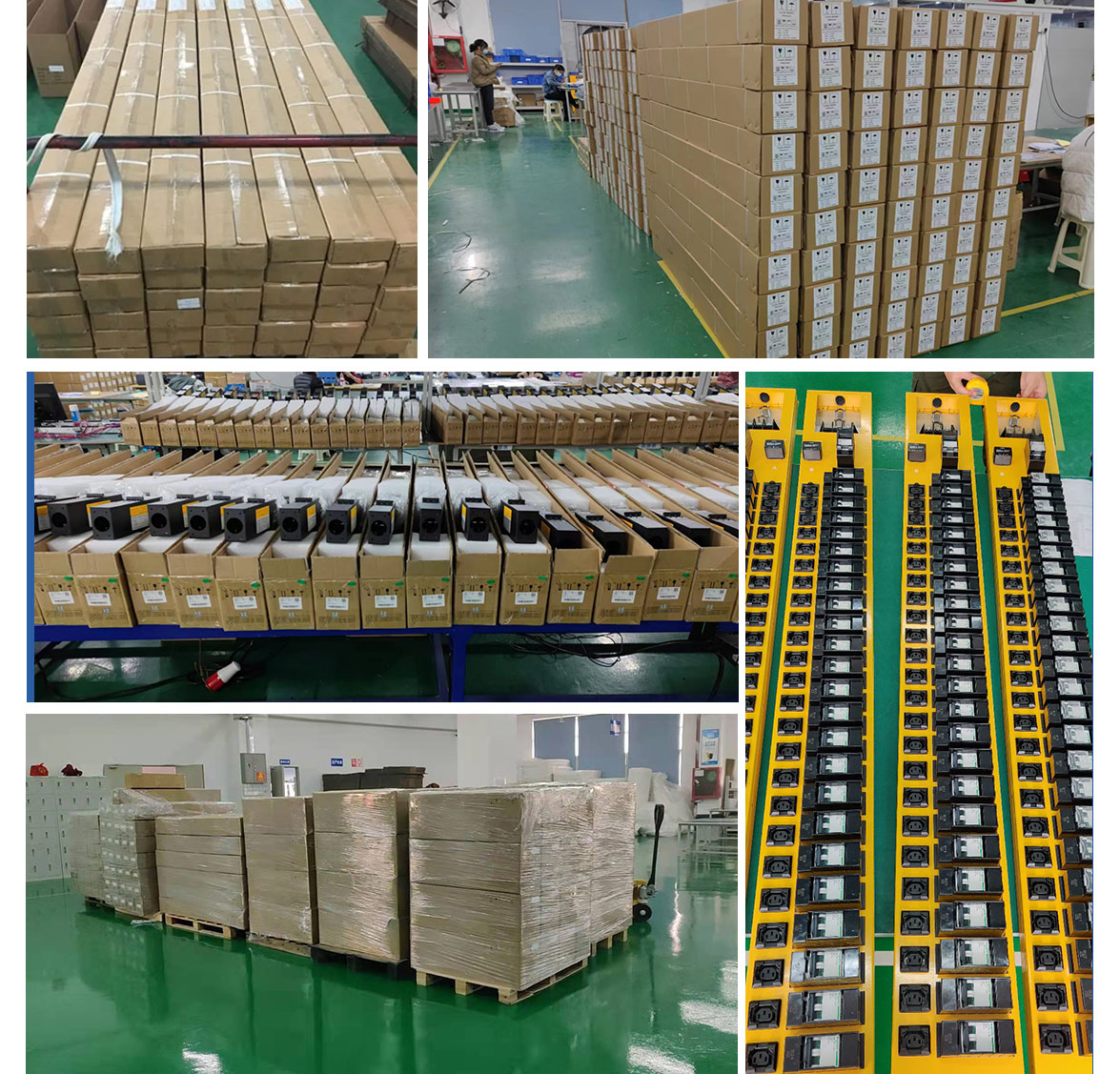

    Factory
